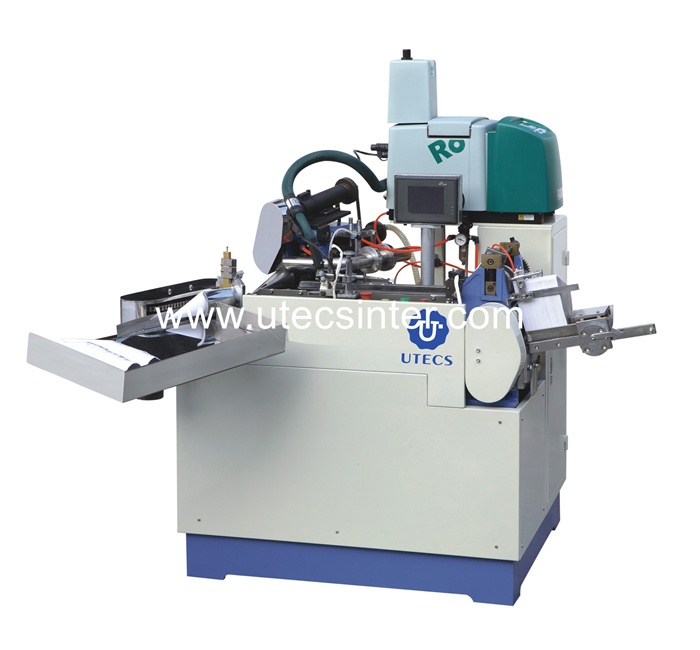

Product name : PCF-A TYPE ICE CREAM PAPER CONE FORMING MACHINE
Item : 2013523184420
 Enlarge Image                   Back
←[Previous Product]              [Next Product]→


Details:
 Features:

1, Robatech gluing system and SMC electromagnetic valves ensuring long service life and less maintenance

2, High efficiency with max speed up to 190 pcs/min

3, Automatic counting, oil circulation lubrication and lower power consumption
4, Convenient installation with small work place occupied
5, Box shaped transmission system for high durability and stability.



Parameters:

Model

PCF-A

Max Speed

190 PCS/minute

Paper Specification

The ordinary paper, compound aluminum foil paper, no
more than
120g/m2, dry wax paper, art paper not exceeding 180g/m2

Power

380v 50HZ 5.5KW

Height & Angle

70-255mm & 17° 28°

Dimensions and Weight

1980*1710* 1800mm, 1200 kg

Main Configuration

1).Glue Box:is adopted “Robatech ” from Switzerland 2).Electromagnetic valve: SMC 3).Transducer: DELTA 4).Counter: OMRON 5).Switch: OMRON 6).Relay: OMRON 7).Photocell eye: SCHNEIDER 8).AC contactor :SCHNEIDER


PCF220A 112.jpg

PCF220A 113.jpg
