Product name : UTSP5080J Screen Printing Machine With Robot Hand Feeder
Item : 20135834642
 Enlarge Image                   Back
←[Previous Product]              [Next Product]→


Details:

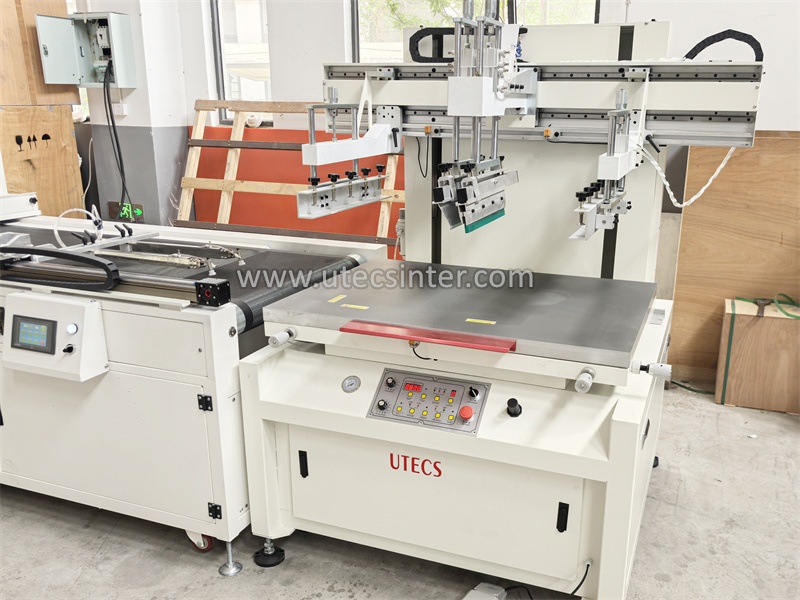

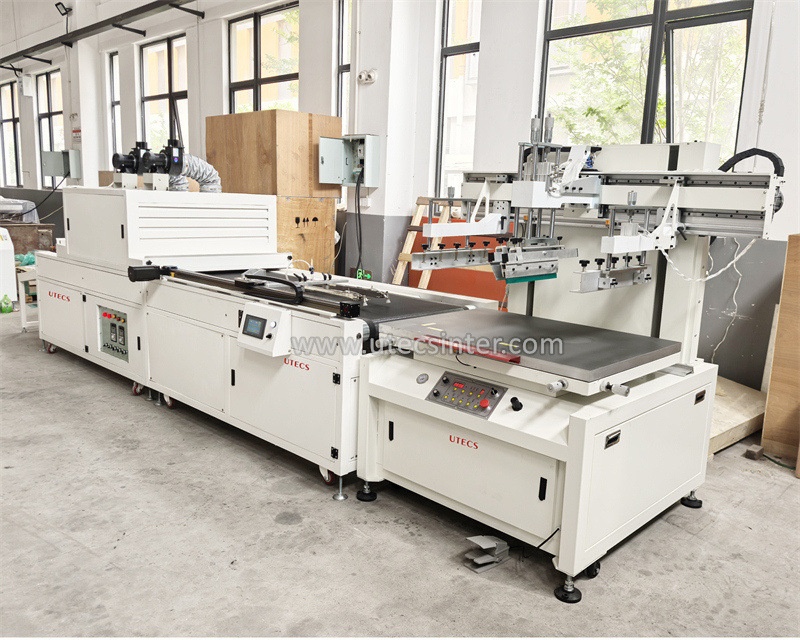

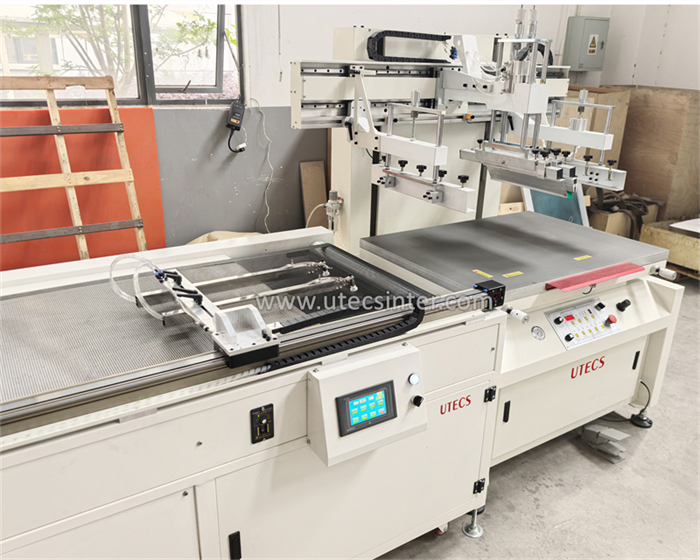

UTSP5080J Screen Printing Machine With Robot Hand Feeder

Video:
https://www.youtube.com/watch?v=l2Hr7xMH11w

Description:
The machine is widely used for printing paper, class, CD, nameplate, stickers, credit card, ceramic decal, PVC,
PCB, SMT tin ointment and membrane switch panel in electronic industry. It is also applicable to the flat printing
such as golden and silver cardboard, metal sheet, and other products, which have high requirement in printing.

Features:
1, 4 cylinders motorized to create even pressure with clear mesh
2, High-precision guide track belt, dual-band drive, high printing precision
3, Decelerator driving printer head moves up and down speedily and stably
4, Fault displays vividly for maintenance
5, Three operation modes: manual/semi-automatic /automatic
6, The speed can be set to match the robot hand feeder

Parameters for screen printer

Model

UTSP4060J

UTSP5080J

UTSP60100J

Max Printing Size

400*600mm

500*800mm

600*1000mm

Table Size

500*700mm

600*900mm

700*1100mm

Max Frame Size

600*1000mm

700*1200mm

900*1400mm

Printing thickness

25mm

25mm

25mm

Max Speed

1200PCS/H

1200PCS/H

1000PCS/H

Voltage

3PH 50HZ 380V

3PH 50HZ 380V

3PH 50HZ 380V

Power

2.1kw

2.3kw

2.8kw

Weight

500kg

600kg

700kg

Dimensions (mm)

1230*950*1580

1400*950*1580

1660*1220*1630

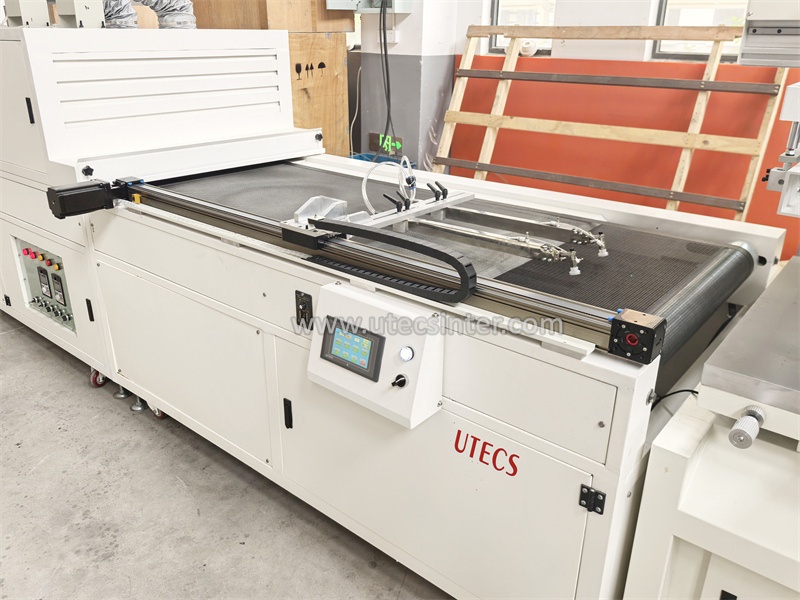

TD600/800UVJ UV Tunnel Dryer With Robot Hand Feeder

Features:
1, Touch screen + PLC controls the operation of various functions
2, Stepper motor with linear guide rail, fast and stable

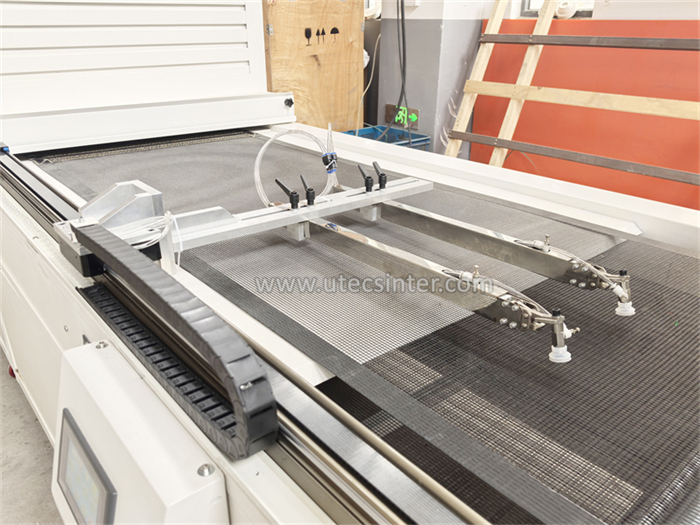

3, Robot hand uses nozzles to take the products inside the conveyor automatically
4, Equipped with 2 sets of UV lamps available for adjustment
5, High quality teflon mesh belt conveyor brings precise production and smooth running.
6, The speed is adjustable.
7, Precise photo spot, high reflective lampshade and quick drying.
8, The height of UV lamps shade is also adjustable.
9, The operating current of  UV lamp is showed outside to display the working status.
10, A heat circulation system inside to keep a high-efficiency working environment.

Parameter:

Model

TD600UVJ

TD800UVJ

Belt Width

600mm

800mm

Belt Length

600*4000mm

800*4000mm

UV Lamp Power

2PCS*3.0KW

2PCS*5.6KW

Speed

5-25m/min

5-25m/min

Voltage

380V 50HZ

380V 50HZ

Weight

550kg

600kg

Dimension

4000x900x1750mm

4000x1100x1750mm
