Products > Printing Machinery > Screen Printing Machines & Accessories > UTFB Flatbed Screen Printing Machine

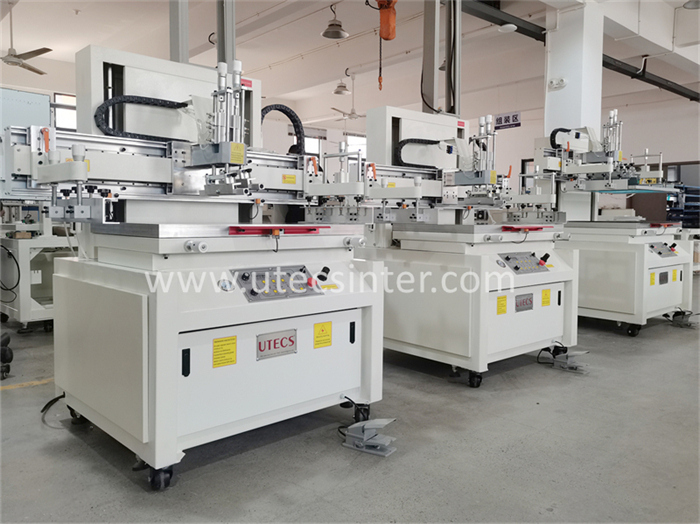

Product name : UTFB Flatbed Screen Printing Machine
Item : 2013590430
 Enlarge Image                   Back
←[Previous Product]              [Next Product]→


Details:
 Features

1, 4 cylinders motorized to create even pressure with clear mesh

2, High-precision guide track with “MEGADYNE” belt, dual-band drive, high printing precision

3, Decelerator driving printer head moves up and down speedily and stably

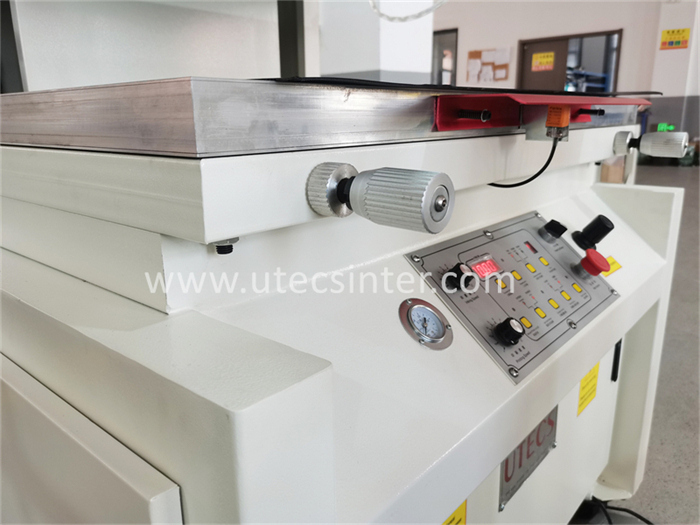

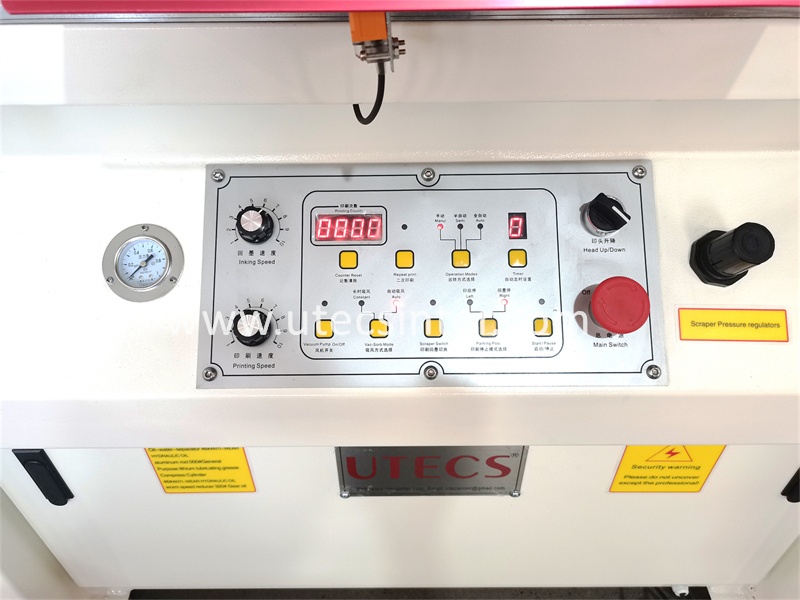

4, Fault displays vividly for maintenance



Parameters:



Model

UTFB-6040

UTFB-7050

UTFB-9060

UTFB-12060

UTFB-12080

Max printing size

600*400mm

700*500mm

900*600mm

1200*600mm

1200*800mm

Max screen frame size

950*600mm

1000*700mm

1200*800mm

1500*800mm

1500*1000mm

Min screen frame size

400*400mm

500*500mm

600*600mm

600*600mm

600*600mm

Printing table size

700*500mm

900*600mm

1100*700mm

1300*700mm

1400*900mm

Printing thickness

0-40mm

0-40mm

0-40mm

0-40mm

0-40mm

Height of instant Off-screen

0-20mm

0-20mm

0-20mm

0-20mm

0-30mm

Max. printing speed

1000t/h

1000t/h

900t/h

900t/h

800t/h

Weight

550kg

600kg

750kg

800kg

950kg

Overall Dimensions

1250*980*1620mm

1350*1020*1620mm

1620*1190*1680mm

1830*1190*1680mm

1830*1390*1680mm

Power

3P4N 50HZ 380V 2.45kw

3P4N 50HZ 380V 2.45kw

3P4N 50HZ 380V 2.8kw

3P4N 50HZ 380V 3.2kw

3P4N 50HZ 380V 3.9kw
