Products > Plastic Machinery > Plastic Cup Thermoforming Machine > PCL-420 Automatic Cup Lid Forming Machine

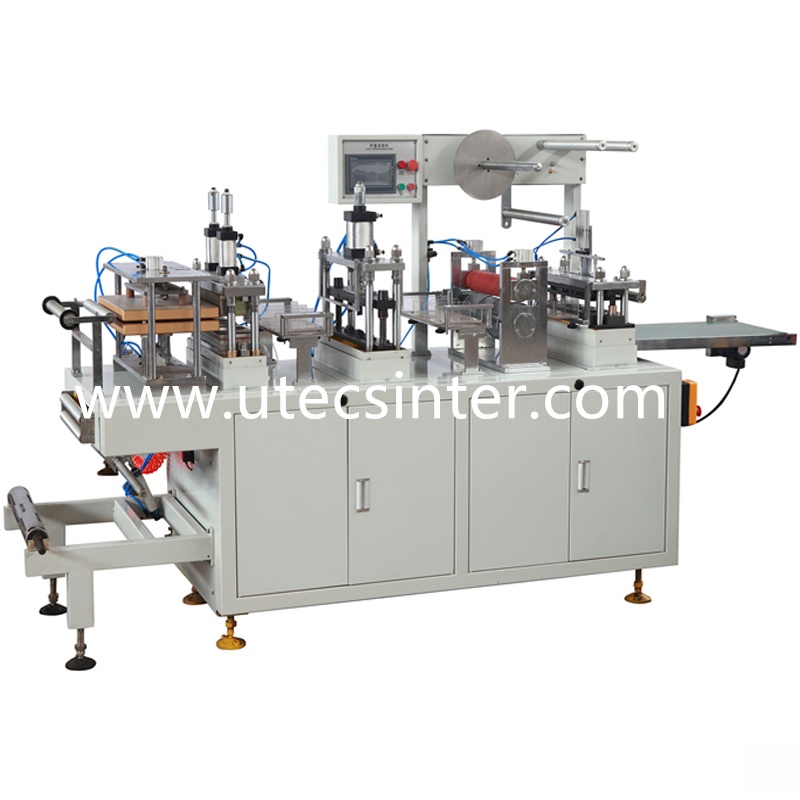

Product name : PCL-420 Automatic Cup Lid Forming Machine
Item : 201311151405
 Enlarge Image                   Back
←[Previous Product]              [Next Product]→


Details:
 Features:

1. Suitable for producing PVC, PET, PS medicine trays, plastic cup lids and thermoforming boxes.

2, Speed reducer synchronized with the motion of main shaft reducing the error to the bottom

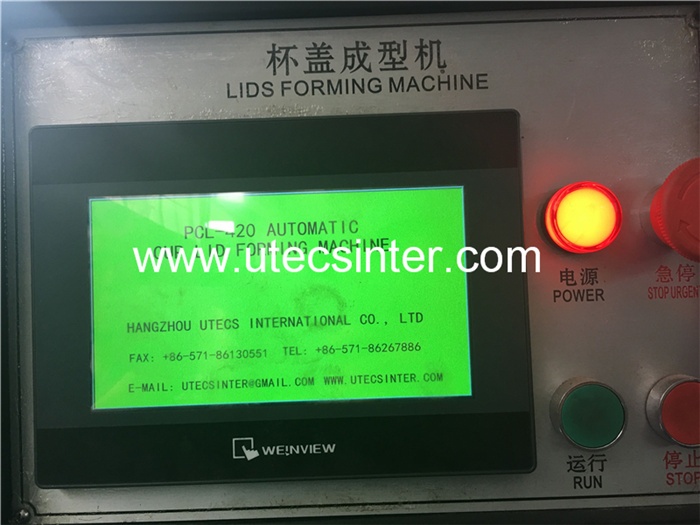

2. Equipped with photoelectric switch and PLC controller letting machine run high smoothly and durably

3. Speed and strokes adjustable, simple and convenient for mold changing, stable running.

4. Positive pressure formation

Parameters:

Punch frequency: 15-40 (times/min)
Max Forming Area: 420*
160 mm

Air Consumption: >0.2m3/min
Forming Depth:
45mm
Stroke Length: 50
-160 mm
Air Pressure (mpa): 0.4-0.7
Power: 1.5 Kw
Dimension: 2500*1000*
1600mm
Weight: 10
00 kg
Plastic type: HIPS PVC PET PS ETC.
