Products > Paper Converting Machinery > Paper Cup & Plate Forming Machines > HBW800 Automatic Hamburger Paper Box Making Machine

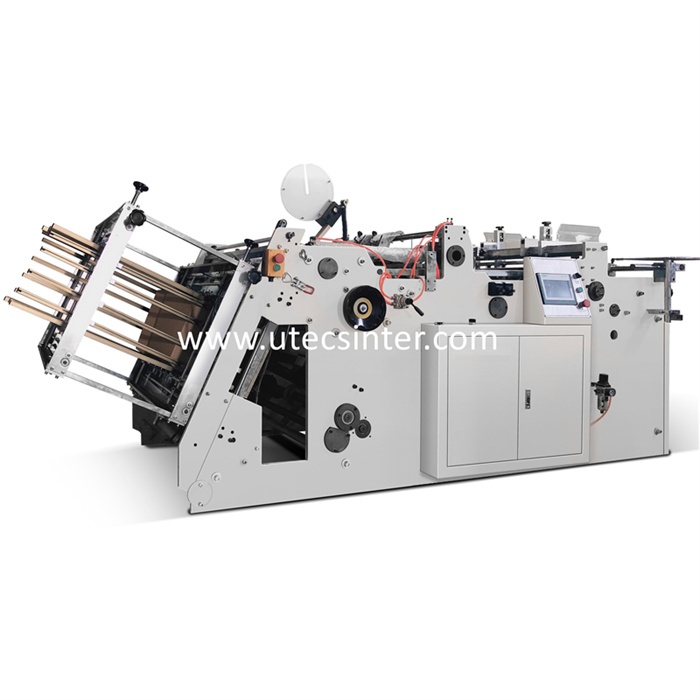

Product name : HBW800 Automatic Hamburger Paper Box Making Machine
Item : 201442617154
 Enlarge Image                   Back
←[Previous Product]              [Next Product]→


Details:
Description:

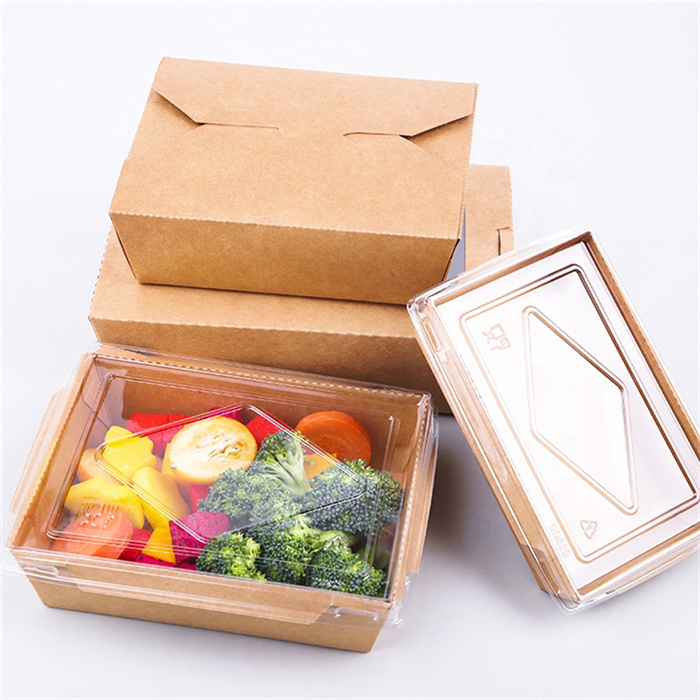

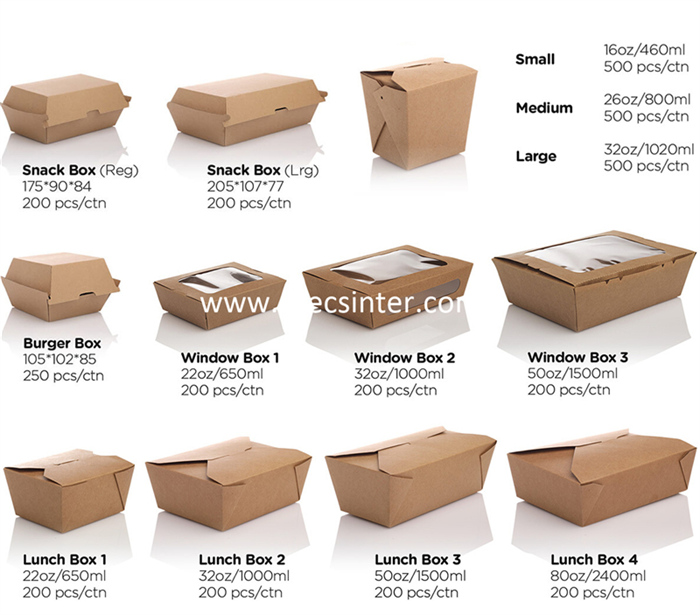

1, The machine is widely used to make different paper boxes such like hamburger box, chips box, fried chicken box, kids meal box, fast food box and noodles box etc.

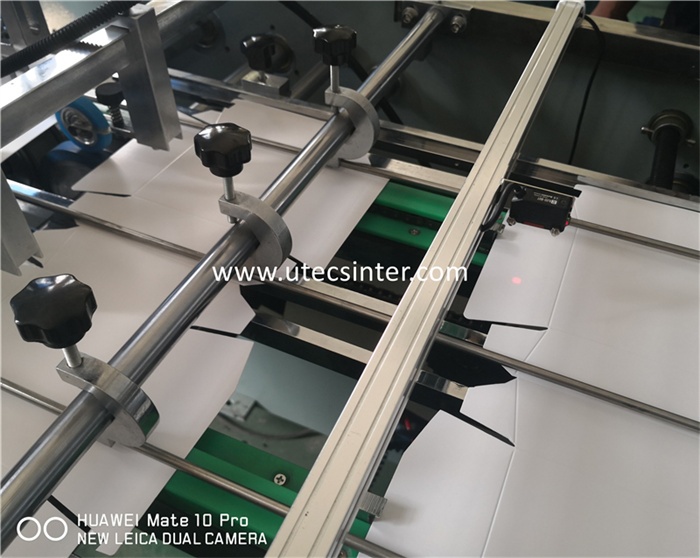

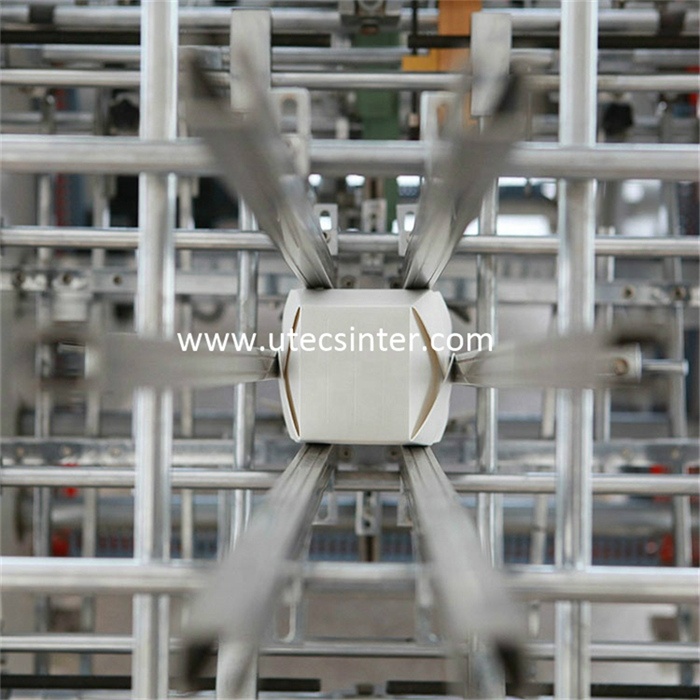

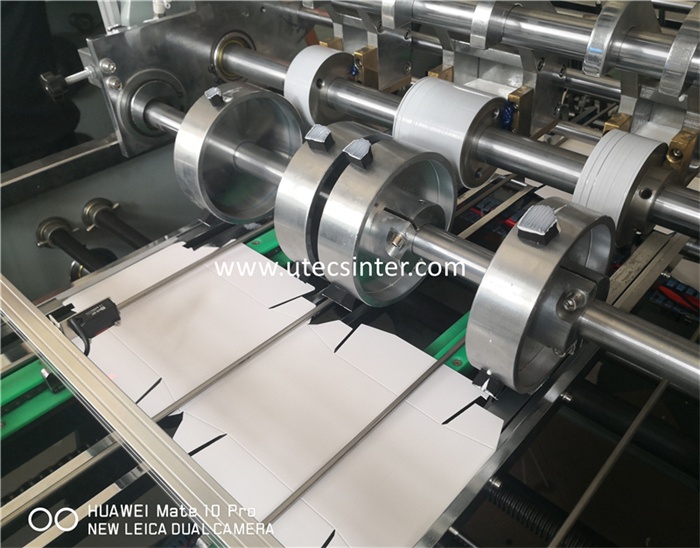

2, The machine includes paper sheet feeder, paper sheet conveyor, glue coating unit, forming unit and box stacker with counter.

3, Servo motor system to feed paper sheet more precisely.

4, Improved swinging arm brings steady service for a long time.

5, Bigger and heavier gear sleeve instead of usual small gear sleeves let the machine run more stably.6, Each forming and collecting section can be adjusted according to the size of mold.

7, Machine features firm structure, high quality, low noise and high efficiency.

8, Plasma treater and hot melt spraying glue system can be mounted on the machine as optional parts.

Parameters:

Model

HBW800

HBW1000

Speed

50-150pcs/min (based on different box)

50-150pcs/min (based on different box)

Paper Thickness

200-600GSM

200-600GSM

Corrugated Paper Thickness

Maxi 3mm

Maxi 3mm

Paper Type

white cardboard, PE coated paper, kraft paper board, corrugated paper

white cardboard, PE coated paper, kraft paper board,  corrugated paper

Paper Blank Width

100-600MM

100-800MM

Paper Blank Length

100-470mm

100-550mm

Burger Box Height

15-220mm

15-300mm

Box Degree

5-40 degrees

5-40 degrees

Total Power:

380V, 5.5KW

380V, 5.5KW

Weight

2000 KG

2400 KG

Dimension

3600*1400*1620mm

3600*1600*1620mm


Components List:

Touch Panel

Siemens: Smart700IE V3

PLC

Siemens: Smart ST20

Inverter

Siemens: v20

Circuit Breaker

Siemens: 5SY6332-7CC

Contactor

Siemens: 3TB4222-0XM0

Relay

Siemens: ZY4N-J DC24V

Switching Power Source

Taiwan Mingwei: LRS-100-24

Photoelectric Switch

Omron

Proximity Switch

Omron

Bearing

HRB

We reserve the right to change the component brand without notice in advance.
