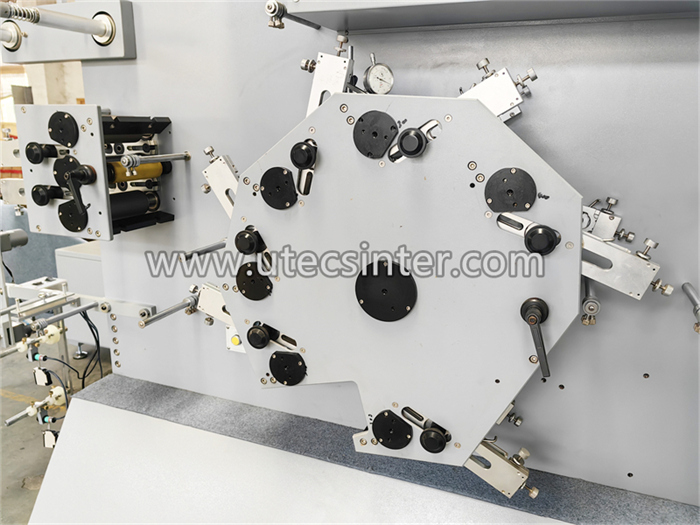

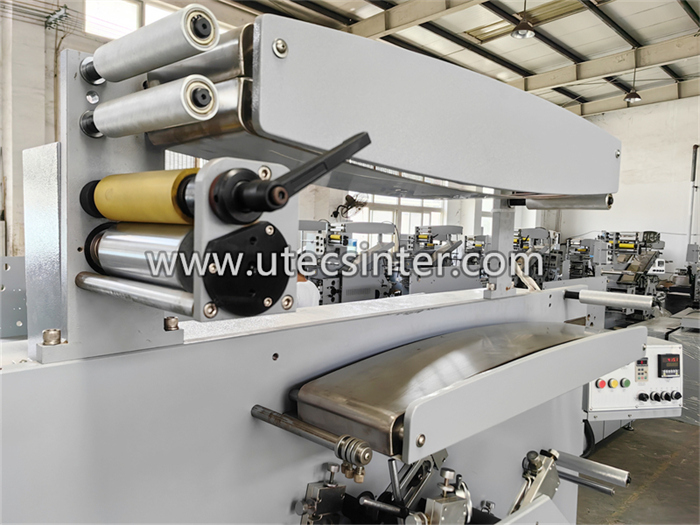

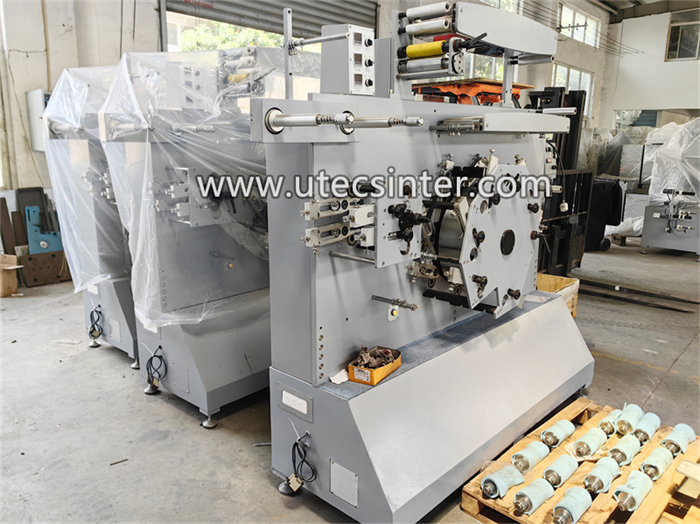

Description:
This ribbon printer functions as flexo press for high color registration and definition requirement. This printer is suitable for variety of roll fabric materials like nylon ribbon, cotton ribbon, elastic ribbon, papers, labels, strapping belts and satins etc
Features:
1. The plate cylinders can be freely exchanged to fit different printing length.
2 The multiple printing result is vivid, firm and accurate registration.
3. Easy operation with reliable mechanic performance.
4. It can print white characters by white ink on the black roll materials
Parameters:
|
Model
|
UGS21S
|
UGS31S
|
UGS42S
|
UGS62S
|
|
Print Colors
|
2/1
|
3/1
|
4/2
|
6/2
|
|
Max Printing length
|
300mm
|
300mm
|
300mm
|
300mm
|
|
Min Printing length
|
106mm
|
106mm
|
106mm
|
106mm
|
|
Max Printing width
|
150mm
|
150mm
|
150mm
|
150mm
|
|
Max Printing speed
|
60m/min
|
60m/min
|
60m/min
|
60m/min
|
|
Power
|
220V/50HZ/2.4kw
|
220V/50HZ/3.2kw
|
220V/50HZ/3.2kw
|
220V/50HZ/3.2kw
|
|
Weight
|
400kg
|
500kg
|
600kg
|
800kg
|
|
Dimension
|
2200x800x1870
|
2200x800x1870
|
2400x800x1870
|
2800x800x1870
|
|
Ceramic Anilox DPI: 150’ 180’ 300’ 500’
|
|
