Features:

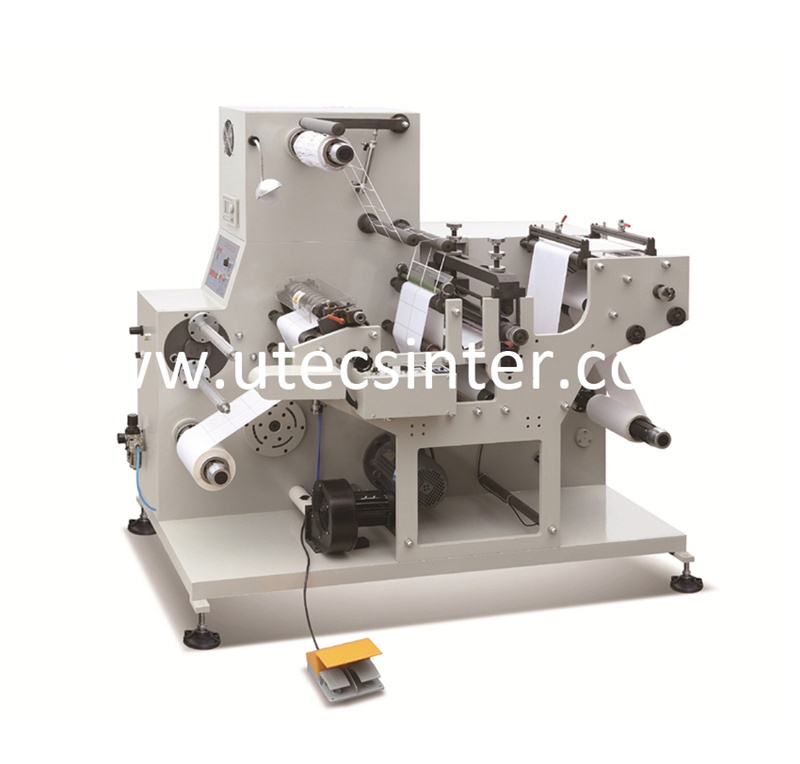

1, This label slitting machine is equipped with accurate rotary die cutting system.
2, Quite suitable to die cut and slit blank adhesive labels in just one pass
3, Automatic label counting, automatic stopping and web guiding by photoelectric sensors.
4, compact structure, fast speed, high efficiency, easy operation, accurate slitting and steady running etc.
Parameters:
|
Model
|
USK320A
|
USK450A
|
|
Slitting speed
|
120m/min
|
120m/min
|
|
Cutting Precision
|
±0.10mm
|
±0.10mm
|
|
Max web width
|
320mm
|
450mm
|
|
Max unwinding diameter
|
700mm
|
700mm
|
|
Max. rewinding diameter
|
600mm
|
600mm
|
|
Power supply
|
3KW, 220/380V
|
3KW, 220/380V
|
|
Dimension
|
1800*1100*1800mm
|
1800*1200*1800mm
|
|
Machine weight
|
1000kgs
|
1200kgs
|
|
Magnetic Cylinder
|
60-150T
|
60-150T
|
