Product name : UCM1100/1400/1700/1900A 2 Roll High Speed Paper Cutting Machine
Item : 202136112922
 Enlarge Image                   Back
←[Previous Product]              [Next Product]→


Details:
 Description:

Servo Precision high speed die cutting machine takes the advanced technology of Germany. The machine computer control system takes AC Servo motor and AC transducer. The conveyor belt takes NITTA from Japan. The electrical system adopts MOELLER & OMRON which leads to the speed of cutting paper much more fast and stable. Germany precise bearing and cutting knife assure the high cutting precision. The controller of soft-touch computer screen is simple and convenient to operate. The anti-curve rack assures the paper flat. This machine is the paper processing machine which is very popular in the paper making and printing industry. It can improve the efficiency and benefit of your work.

Parameter:
Model: UCM1100/1400/1700/1900A
Cutting Mode: The top knife cuts reciprocally and the down knife is fixed
Paper Cutting Thickness: 60-550GSM
Cutting Precision: Cutting length≤1000mm: +/-0.5mm; Cutting length>1000mm: +/-0.1%
Max Cutting Frequency: 300 cutting strokes/min
Max Cutting Speed: 300m/min
Cutting Range: 450-1450mm(UCM1100A), 450-1600mm(UCM1400/1900A)
Max Unwinding Diameter: 1500mm(UCM1100A), 1800mm(UCM1400/1900A)
Max Paper Cutting Width: 1100mm/1400mm/1700mm/1900mm
Air Compressor: 0.8MPA
Total Power: 22kw/26kw/30kw/35kw
Gross Weight: 9000Kg/11000Kg/13000Kg/15000Kg

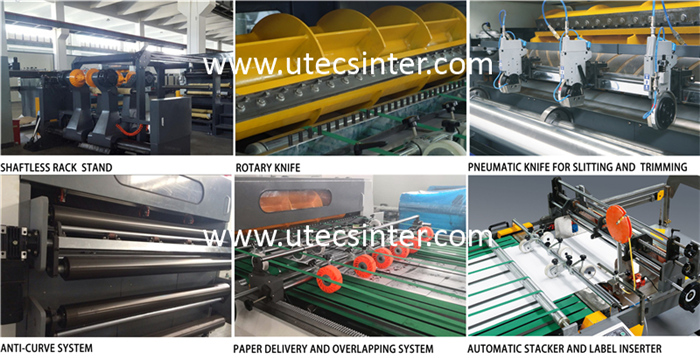

Features:

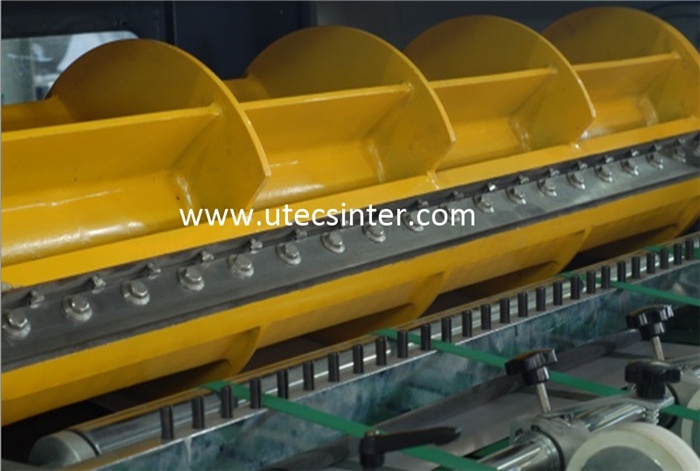

1,High speed rotary cutting knife
2, Static elimination system
3, Pneumatic Knife for Middle slitting and waste collection

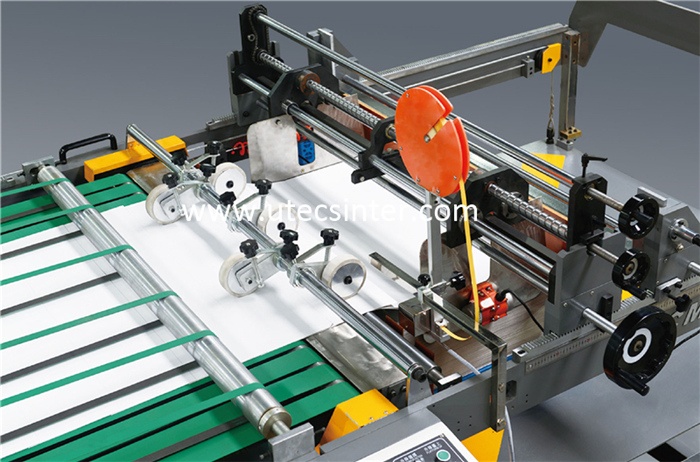

4, Automatic counting and label inserting device
5, Paper transporting equipment
6, Automatic paper trimming and collecting system
7, Electric control unit
8, Double arm oil hydraulic shaftless mill roll stand
9, Automatic paper tension controller
10, Automatic vacuum system
11, Web guiding system
12, Photo senor registration tracking system
13, LCD control panel 14, AC servo motor
