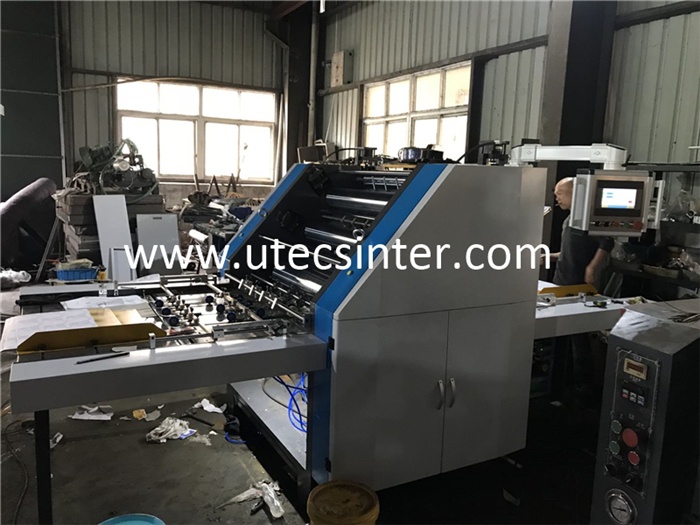

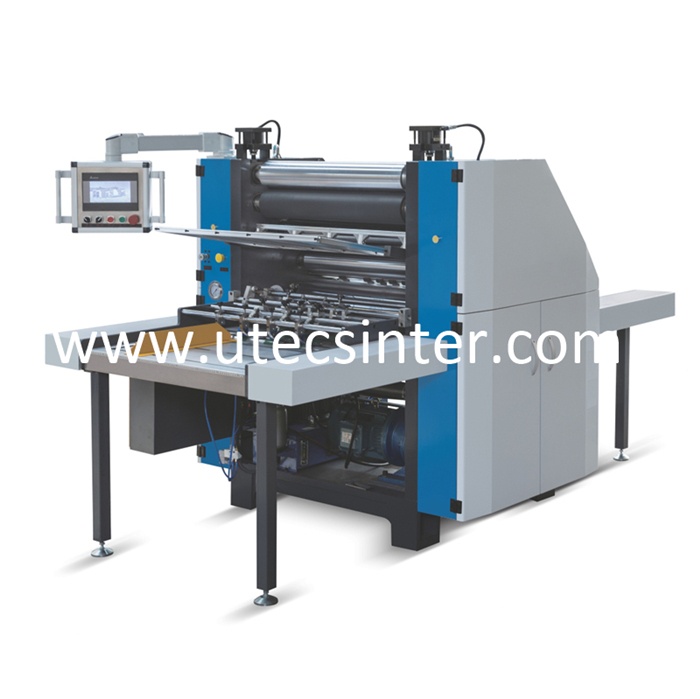

Product name : UTBK800/1150B Semi Automatic Cardboard Laminating Machine
Item : 20213711404
|
Details: | ||||||||||||||||||||||||||||||
Features:

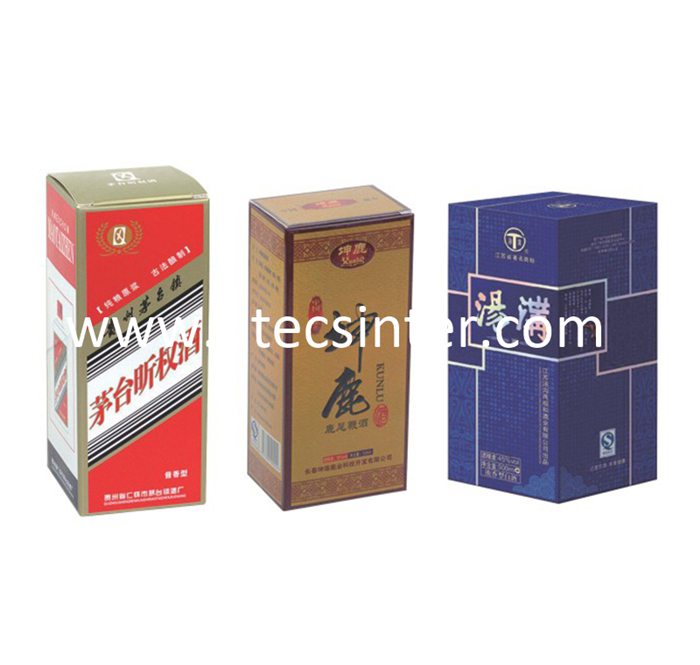

1. Nice and compact design in structure but easy operation and less maintenance required. 2. Quite even glue distribution and quick and strong cardboards lamination. 3. Speed adjustable by frequency converter max up to 65PCS/min 4. Suitable to bond various types of papers (cardboards, wine box and packing box etc 5. High precision in cardboard mounting with error down to 0.2mm 6. Nice and clean Paper surface after lamination Parameters:
Note: 1, The speed and mounting accuracy will be effected by the paper size and quality. The technical parameters above are just for reference 2, Paper thickness above is based on single sheet. The maxi thickness after mounting should be not more than 1.5mm and less than 300gsm 3, When the workshop temperature is lower than 15 degree, the adhesive activity will be reduced and mounting fault will occur. If this case happens, please use heating system. |
