Products > Laminating and Embossing Machine > Laminating Machines for Paper > UTBK1100/1150A Semi Automatic Cardboard Laminating Machine

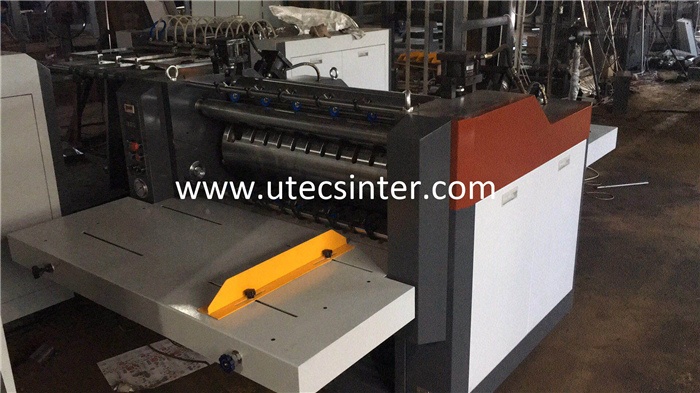

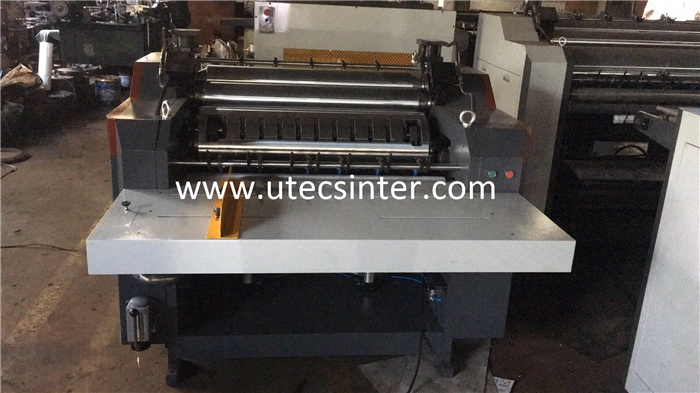

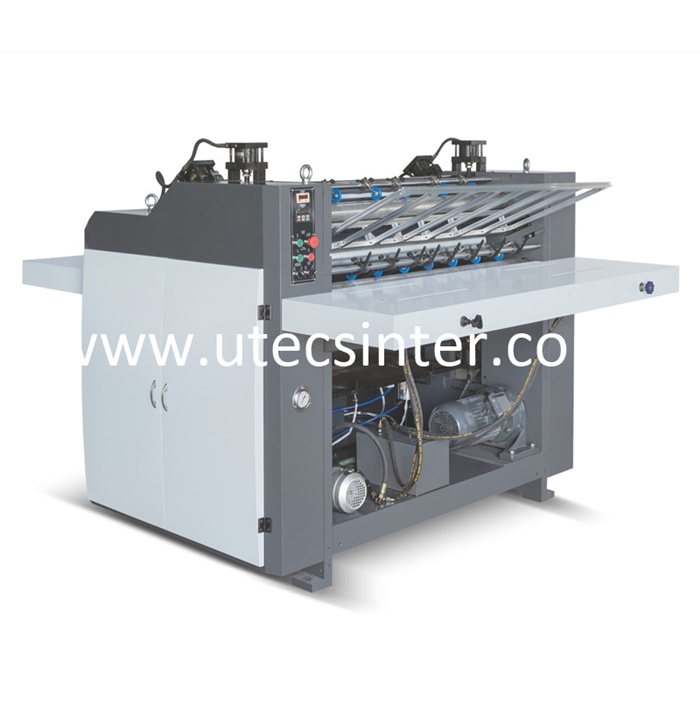

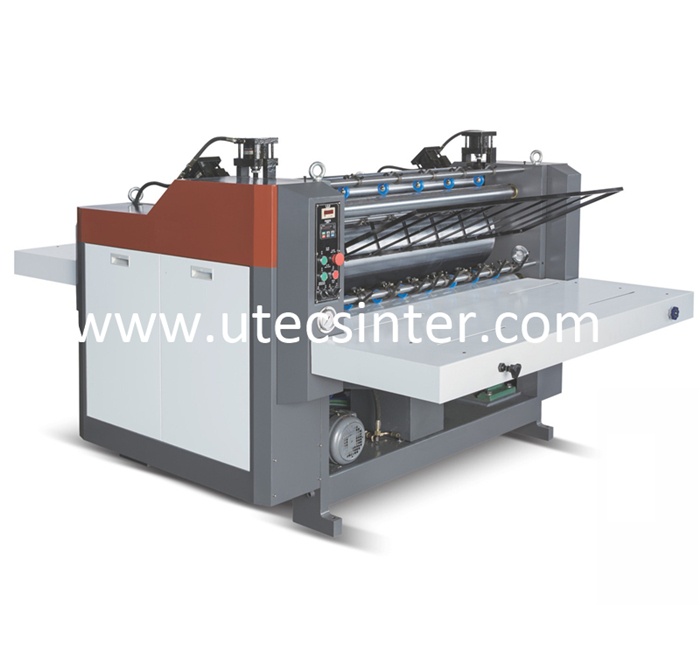

Product name : UTBK1100/1150A Semi Automatic Cardboard Laminating Machine
Item : 202137114935
 Enlarge Image                   Back
←[Previous Product]              [Next Product]→


Details:
Features:

1.  Nice and compact design in structure but easy operation and less maintenance required.

2. Quite even glue distribution and quick and strong cardboards lamination.

3. Clean in surface with dirt and bonding sides.

4. Low glue and power consumption but high working efficiency 10-50PCS/min

5. Suitable to bond various types of papers (not standard papers) and irregular papers.

6. High precision in cardboard mounting with error down to 0.1-0.5mm

7. Paper surface with non-effect (frosted, ice-flower and membrane etc.



Parameters:

Model

UTBK1100A

UTBK1150A

Max Size

670*920mm

720*1080mm

Min Size

280*280mm

280*280mm

Speed

10-50PCS/MIN

10-50PCS/MIN

Power

3phase, 380V, 3Kw

3phase, 380V, 3Kw

Tolerance

0.2mm

0.2mm

Face Paper Weight

150-450GSM

150-450GSM

Bottom Glued Paper Weight

250-450GSM

250-450GSM

Weight

1800kg

2200kg

Dimension

2300*1600*1350mm

2300*1800*1350mm
