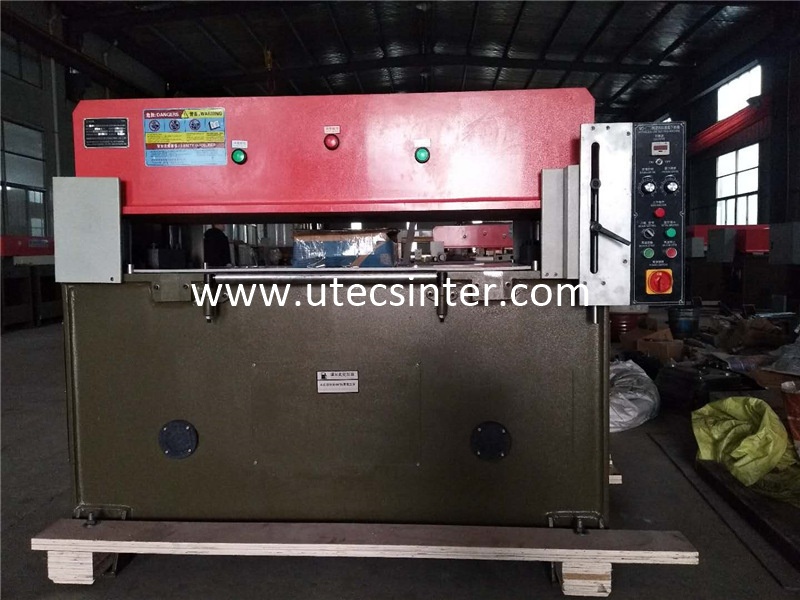

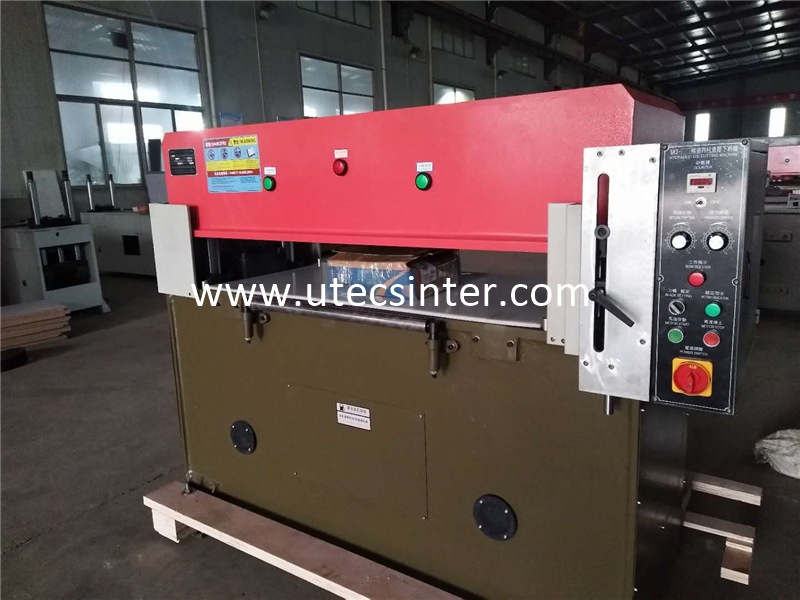

Product name : MQ40 Hydraulic Die Cutting Machine
Item : 201352519120
 Enlarge Image                   Back
←[Previous Product]              [Next Product]→


Details:

Features:
1
The machine is widely applicable to cut different materials like paper, carton, rubber and leather etc.
2
Double oil cylinder and precise double-crank connecting rod balancing mechanism are adopted to ensure the even cutting depth at each cutting position.
3
With special setting mechanism, the stroke length is simple and accurate to be adjusted.
4
Automatic central oil supply lubricating system brings a long service life of machine.

Parameter:

Maximum Cutting Force

40T

50T

60T

80T

100T

Tension distancemm

50-200

50-200

50-200

50-200

50-200

Cutting areamm

1250×650

1250×650

1250×750

1250×850

1250×950

Main motor power

3 KW

4 KW

4 KW

5.5 KW

7.5 KW

Weight

1800 KG

2300 KG

2500 KG

3100 KG

3600 KG
