Product name : HD400E YT2800 Economic Automatic V Bottom Paper Bag Making Machine With Flexo Printer
Item : 202122015255
 Enlarge Image                   Back
←[Previous Product]              [Next Product]→


Details:
 Description:

This machine forming the paper bag in one process from roll paper, edge folding, tube forming, cutting, gluing, bottom folding, bottom gluing and finishing bag. Easy operation, low power consumption, high efficiency. It is an ideal machine for producing food bags like bread bags, KFC bags and McDonald’s bags.

Features

1) Main motor with inverter

2) The machine can be stop automatically once out of material.

3) Wheel type gusset unit with motor driving.

4) Closed type automatic glue application and forming system.

5) Side lay working table, easy operation.

Parameters:

Model

HD400E

HD600E

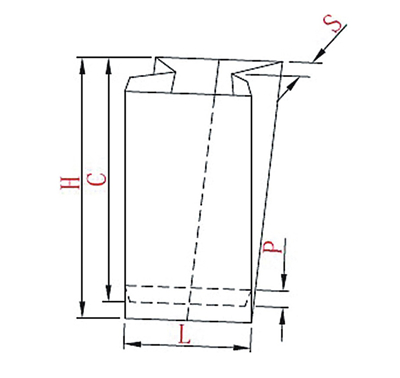

Bag length (H)

160-400mm

220-650mm

Bag width (L)

60-260mm

80-300mm

Side gusset (S)

20-100mm

20-100mm

Paper thickness

40-80gsm

40-80gsm

Feeding mother roll width

260-720mm

260-900mm

Speed

60-400pcs/min

60-400pcs/min

Power

8kw

8kw

Weight

1500kgs

1800kgs

Dimension (L*W*H)

2850*2000*1750mm

3150*2550*1750mm

Note: the actual machine speed depends on paper & adhesive quality, bag dimension and operator experience.
