Product name : ML750/1300 Die Cutting & Creasing Machine
Item : 201352292016
 Enlarge Image                   Back
←[Previous Product]


Details:
 This die cutting & creasing machines are widely used in paper converting and plastic industry. It can cuts and crease a lot of products such as cardboard, corrugated board, plastic and leather etc. The machine features high durability and stability.

Features:

1. Sliding bearings are made of high quality alloy cooper ensuring to get effect of anti-friction and less shakings.

2. Flywheel applies large moment of force and large pressure.

3. One casting structure by using top-grade materials provides high strength.

4. Single plate electromagnetic clutch is sensitive and reliable.

5. Operation altitude is reasonably arranged where the movable platen can be opened to its optimum.

6. Reliable safety system

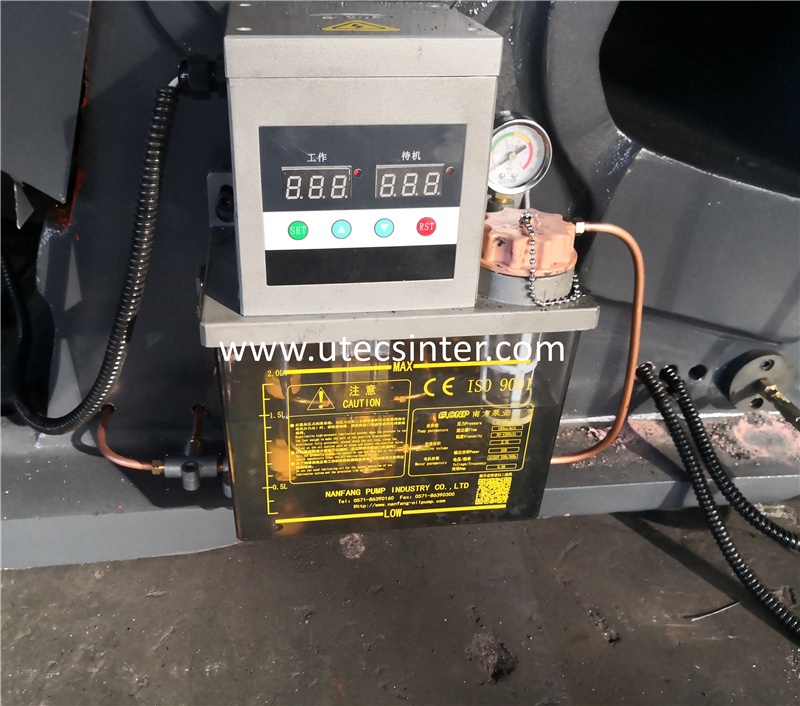

7, Centralized automatic lubricating system, stainless steel plate and pneumatic plate push up are optional to be equipped.



Parameters:

Model

Inner rule size

(mm)

Speed

(strokes/min)

Max Rule length

(m)

Motor power

 (Kw)

Overall dimension

(mm)

Weight

(kg)

ML750

750x520

25±2

<15

2.2

1450x1600x1450

1900

ML930

930x670

23±3

<25

4

1750x1900x1700

3000

ML1040

1040x720

23±3

<28

4

2000x2010x1900

3500

ML1100

1100x800

20±2

<32

4

2020x2010x1900

4500

ML1200

1200x820

20±2

<32

5.5

2020x2020x1950

5000

ML1300

1300x920

15±2

<40

5.5

2600x2100x1950

6000
