Product name : ML1400/2200 Die Cutting & Creasing Machine
Item : 201352292820
 Enlarge Image                   Back
←[Previous Product]              [Next Product]→


Details:
 This die cutting & creasing machines are widely used in paper converting and plastic industry. It can cuts and crease a lot of products such as cardboard, corrugated board, plastic and leather etc. The machine features high durability and stability.

Features:

1. Sliding bearings are made of high quality alloy cooper ensuring to get effect of anti-friction and less shakings.

2. Flywheel applies large moment of force and large pressure.

3. One casting structure by using top-grade materials provides high strength.

4. Single plate electromagnetic clutch is sensitive and reliable.

5. Operation altitude is reasonably arranged where the movable platen can be opened to its optimum.

6. Reliable safety system

7. Three running modes: single cutting, continuous cutting and time delayed cutting

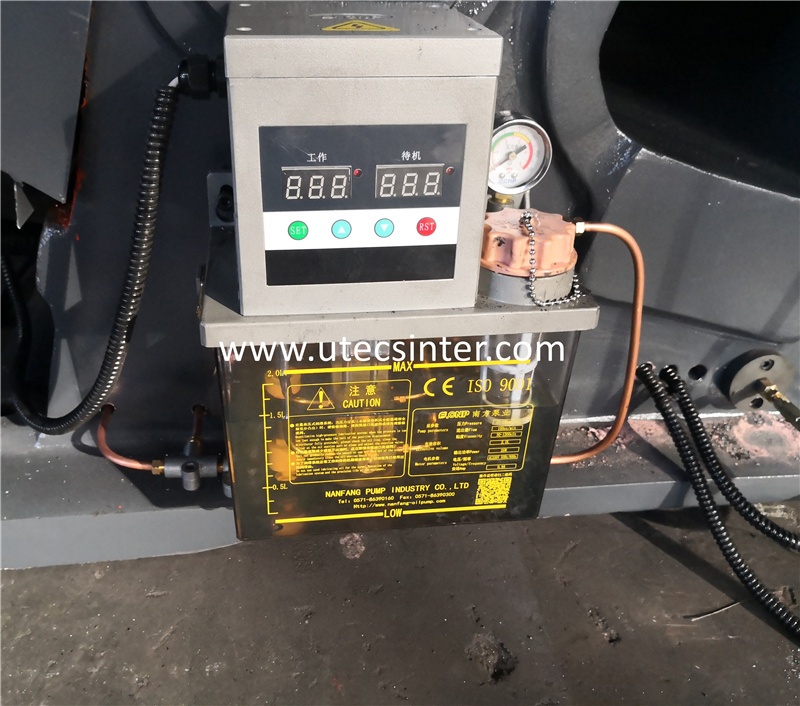

8, Centralized automatic lubricating system, stainless steel plate and pneumatic plate push up are optional to be equipped.



Parameters:

Model

Inner rule size

(mm)

Speed

(strokes/min)

Max Rule length

(m)

Motor power

 (Kw)

Overall dimension

(mm)

Weight

(kg)

ML1400

1400x1000

15±2

<45

7.5

2600x2100x1950

6500

ML1500

1500x1040

14±2

<45

7.5

2650x2100x2000

7000

ML1600

1600x1250

13±2

<50

11

2850x2250x2100

11500

ML1800

1800x1280

13±2

<60

15

3150x2250x2250

13000

ML2000

2000x1400

12±2

<65

15

3150x2250x2300

15500

ML2200

2200x1400

12±2

<68

18

3300x2250x2300

16500
