Features:

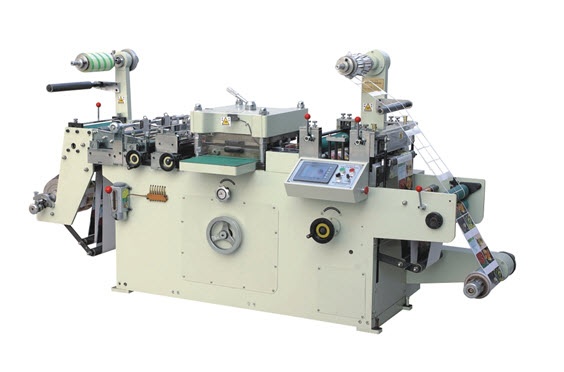

This is flatbed die punching machine in high precision. The paper feeding process is controlled by servo motor. Three photoelectric switches equipped makes sure that process of web-guiding, die cutting, laminating, waste rewinding, paper sheeting or rewinding can be finished in the process. The machine is applicable to die cut self adhesive labels, film labels and laser anti-false labels etc. Itis an ideal auxiliary of flexo press, screen printing machine and other printer etc.
Parameters:
|
Model
|
UTM-320B
|
UTM-420B
|
|
Die Cutting speed
|
30-180/min
|
30-100/min
|
|
Max Feeding Diameter
|
450mm
|
450mm
|
|
Max web width
|
320mm
|
420mm
|
|
Max Die Cutting Width
|
300mm
|
400mm
|
|
Max Die Cutting Length
|
300mm
|
400mm
|
|
Positioning Precision
|
±0.10mm
|
±0.10mm
|
|
Main Motor power
|
2.2kw
|
3.7kw
|
|
Total Power
|
3.5kw
|
5.5kw
|
|
Power Supply Voltage
|
220v±10%
|
380v±10%
|
|
Weight
|
(about)1500kg
|
(about)1800kg
|
|
Overall Dimension
|
2800x950x1400mm
|
2800x1050x1400mm
|
|
