Products > Die Cutting & Creasing and Slitting Machine > Die Cutting & Creasing Machines > Die Cutting Mould Making Machine

Product name : Die Cutting Mould Making Machine

Item : 2013522103022

Enlarge Image

Back

←[Previous Product] [Next Product]→

Details:

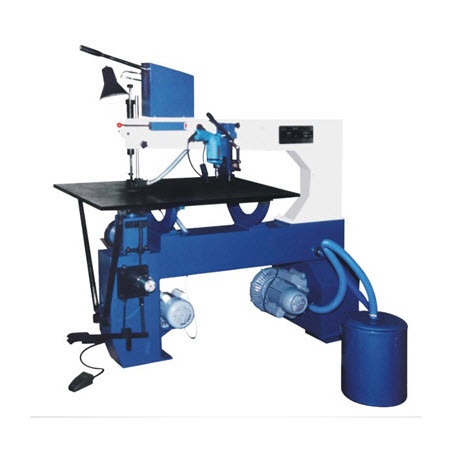

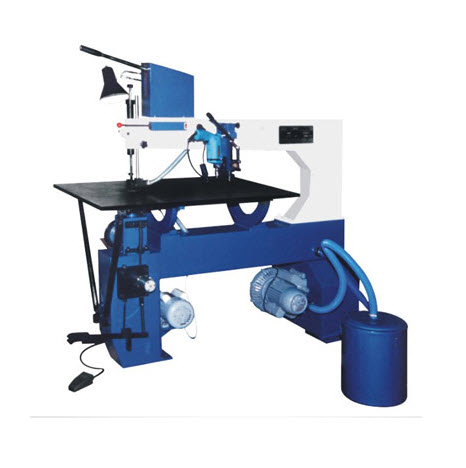

1, MS-B Series Sawing Machine

Features:

1. Easy operation and excellent workmanship.

2. Sawdust collected user friendly.

Parameters:

Model	MS-1200B	MS-1400B
Working area	1200	1400
Table Size	800×1200	900×1400
Saw Blade Up & Down Stroke	25	25
Card Saw Blade Thickness	0.3-2	0.3-2
Max Stencil Thickness	30	30
Plate material	Wood or Plastic	Wood or Plastic
Speed (Strokes/min)	1300	1300
Power	750W, 220V	750W, 220V
Saw Blade	Foot Pedal	Foot Pedal
Sawdust Cleaning Type	Absorption	Absorption

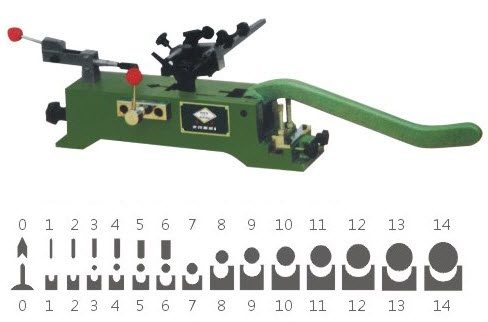

2, MF-25A Blade Former

Parameters:

1、 Min blade diameter：10mm, Min Angle：85 Degree, Radius of Min Arch：3mm
Min Diameter of the Blade Being Heat Treated.：6mm, Min Angle：60 Degree, Radius of Min Arch：2.5mm
