Products > Printing Machinery > Screen Printing Machines & Accessories > UTFB Flatbed Screen Printing Machine

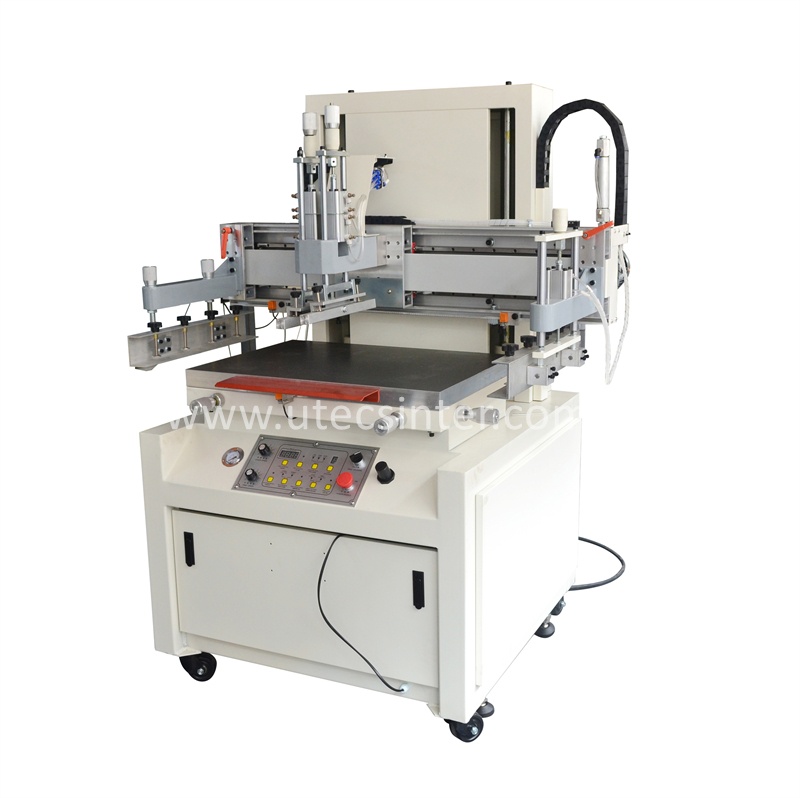

Product name : UTFB Flatbed Screen Printing Machine

Item : 2013590430

Enlarge Image

Back

←[Previous Product] [Next Product]→

Details:

Features

1, 4 cylinders motorized to create even pressure with clear mesh

2, High-precision guide track with “MEGADYNE” belt, dual-band drive, high printing precision

3, Decelerator driving printer head moves up and down speedily and stably

4, Fault displays vividly for maintenance

Parameters:

Model	UTFB-6040	UTFB-7050	UTFB-9060	UTFB-12060	UTFB-12080
Max printing size	600*400mm	700*500mm	900*600mm	1200*600mm	1200*800mm
Max screen frame size	950*600mm	1000*700mm	1200*800mm	1500*800mm	1500*1000mm
Min screen frame size	400*400mm	500*500mm	600*600mm	600*600mm	600*600mm
Printing table size	700*500mm	900*600mm	1100*700mm	1300*700mm	1400*900mm
Printing thickness	0-40mm	0-40mm	0-40mm	0-40mm	0-40mm
Height of instant Off-screen	0-20mm	0-20mm	0-20mm	0-20mm	0-30mm
Max. printing speed	1000t/h	1000t/h	900t/h	900t/h	800t/h
Weight	550kg	600kg	750kg	800kg	950kg
Overall Dimensions	12509801620mm	135010201620mm	162011901680mm	183011901680mm	183013901680mm
Power	3P4N 50HZ 380V 2.45kw	3P4N 50HZ 380V 2.45kw	3P4N 50HZ 380V 2.8kw	3P4N 50HZ 380V 3.2kw	3P4N 50HZ 380V 3.9kw
