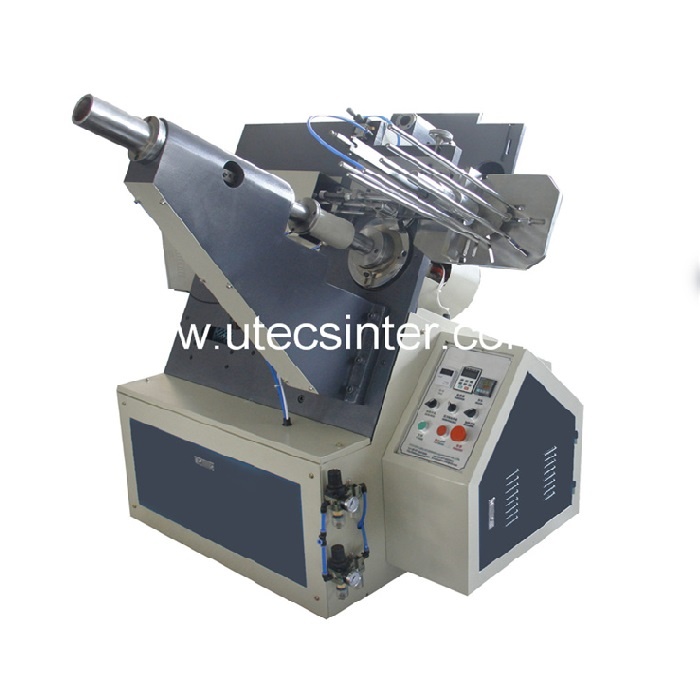

CTS 120 Cake Paper Tray Forming Machine

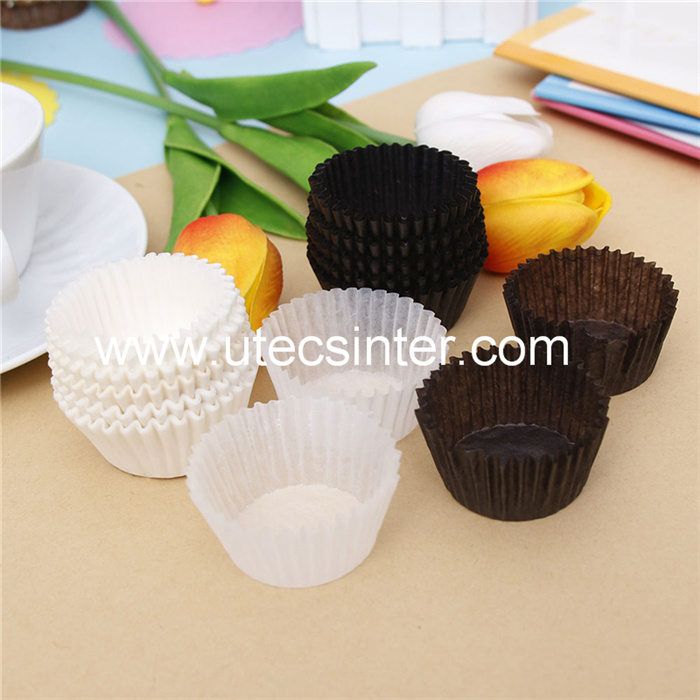

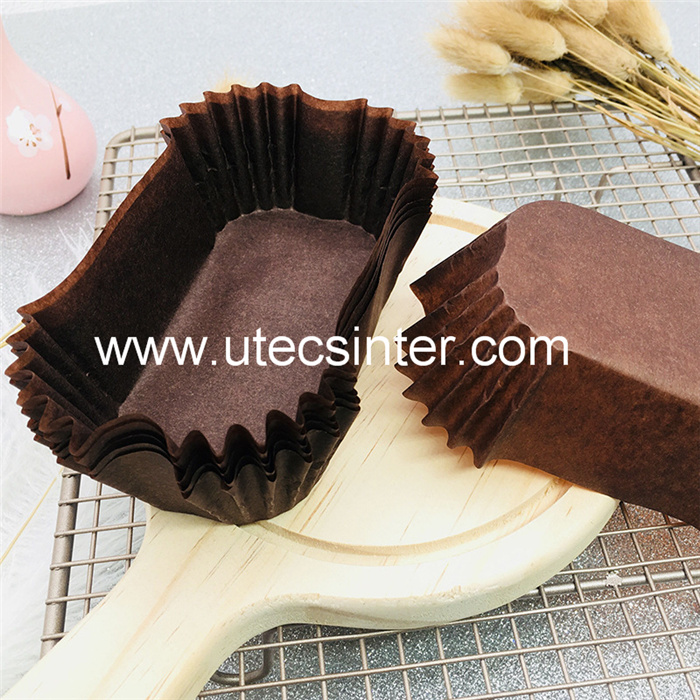

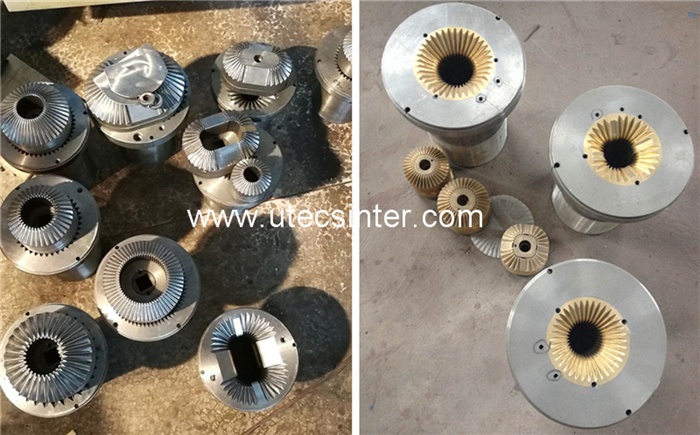

CTS 120 cake paper tray forming machine pneumatically controls paper feed, automatic paper distribution, hot forming and ejection through the mold. The machine can produce various cake paper trays by changing molds. In addition,the machine features simple operation, high production efficiency and stable performance by reliable speed and temperature controllers.
Parameters:
|
Model
|
CTS120
|
|
Paper size (stretching)
|
φ40-φ120mm
|
|
Raw material
|
Greasproof paper
|
|
Sheet size
|
15～80g/m2
|
|
Production efficiency
|
20~40 times/minute, 15~30sheets/time
|
|
Power voltage
|
380V, 2.5KW(motor:1.5KW, electric heating:1KW
|
|
Air Source
|
0.6MPa, 0.3m3/min
|
|
Weight
|
500kg
|
|
Size
|
1580*1480*1600mm
|
