Products > Laminating and Embossing Machine > Flute Laminating Machine > BZ1450/1650HS High Speed Automatic Flute Laminator with Flip Flip Stacker

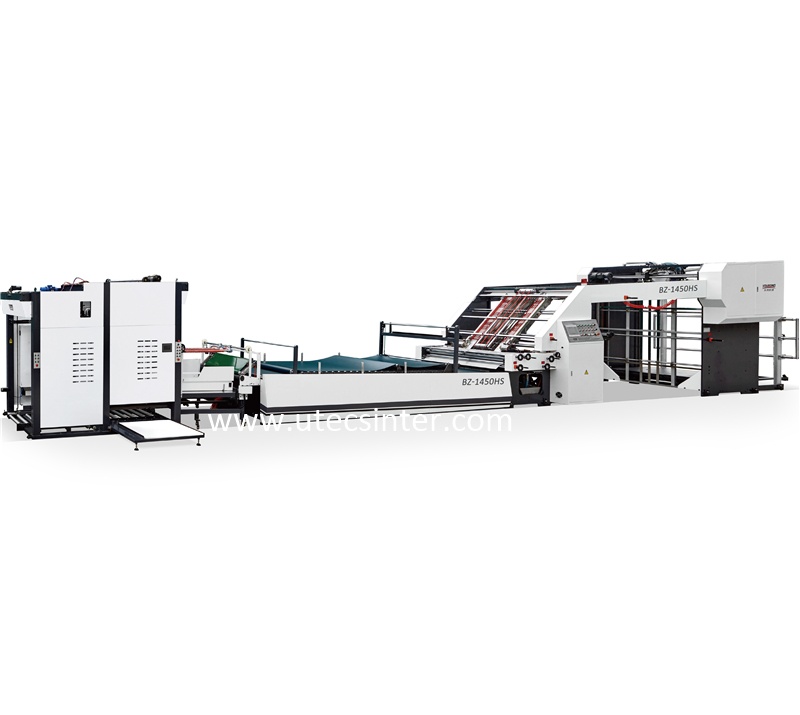

Product name : BZ1450/1650HS High Speed Automatic Flute Laminator with Flip Flip Stacker
Item : 202169145710
 Enlarge Image                   Back
←[Previous Product]              [Next Product]→


Details:
Features:

1, Automatic collecting, front and back placed stacking

2, Save time and effort, simple and easy to learn

3, Servo driven positioning, automatic tracking system





Description:

High speed Automatic laminating machine and flip flop machine. Top printed sheet and corrugated are laminated accurately and pressed through the conveyor, and then the laminated sheets be stacked based on the set amount in front and back side and slapped automatically and finally the stacked sheets come out automatically. The whole line achieves the high automation of the lamination.

Parameters:

Model

BZ1450HS

BZ1650HS

Max Sheet size

1450×1450mm

1650×1450mm

Min Sheet size

500×500mm

500×500mm

Top sheet thickness

150-500g

150-500g

Bottom sheet thickness

A/C/C/E/F (Corrugated paper)(four ply corrugated paper)

Fitting precision

±1mm

±1mm

Air consumption

1.2 m3/min

1.2 m3/min

Dimension

23.6*2.7*3M

23.6*2.9*3M

Machine power

30KW

32KW
