Products > Laminating and Embossing Machine > Flute Laminating Machine > BZ1300/1650ES Automatic Flute Laminator with Flip Flip Stacker

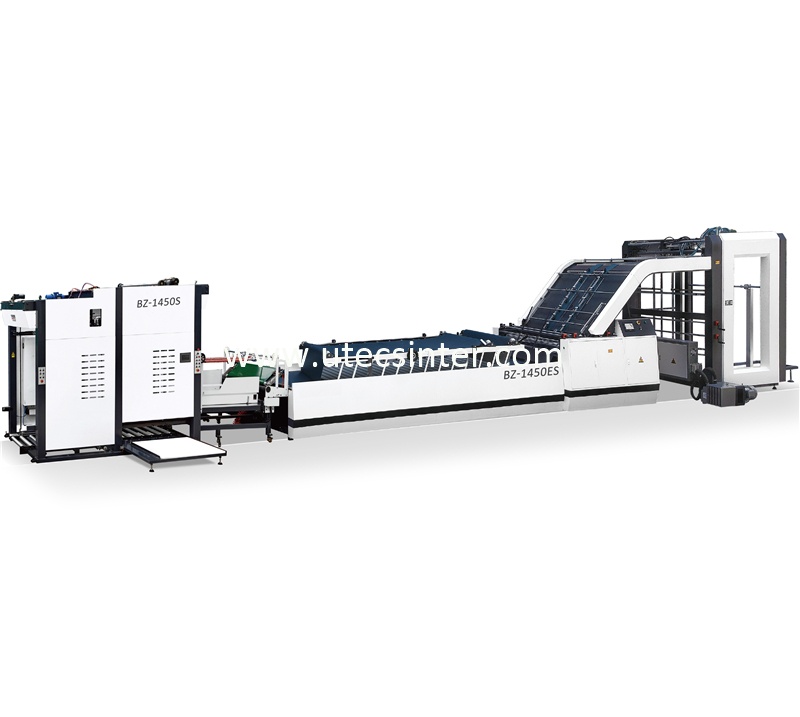

Product name : BZ1300/1650ES Automatic Flute Laminator with Flip Flip Stacker
Item : 202169151822
 Enlarge Image                   Back
←[Previous Product]              [Next Product]→


Details:
 This machine is used for the lamination of top colorized sheets and bottom corrugated paper. The machine features simple operation, less maintenance, high speed and lamination precision.

Features:

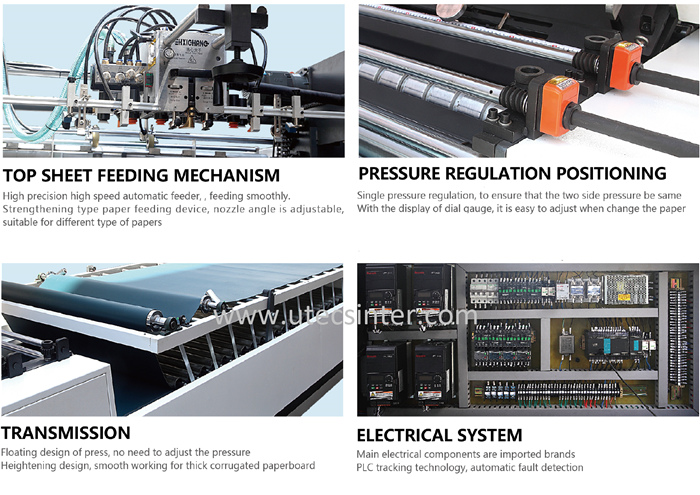

1. 1.High precision paper feeding mechanism

2. Bottom and top paper automatic tracking

3. Top Paper side pull gauge positioning accuracy

4. Bottom paper with Servo system, high speed and sensitive

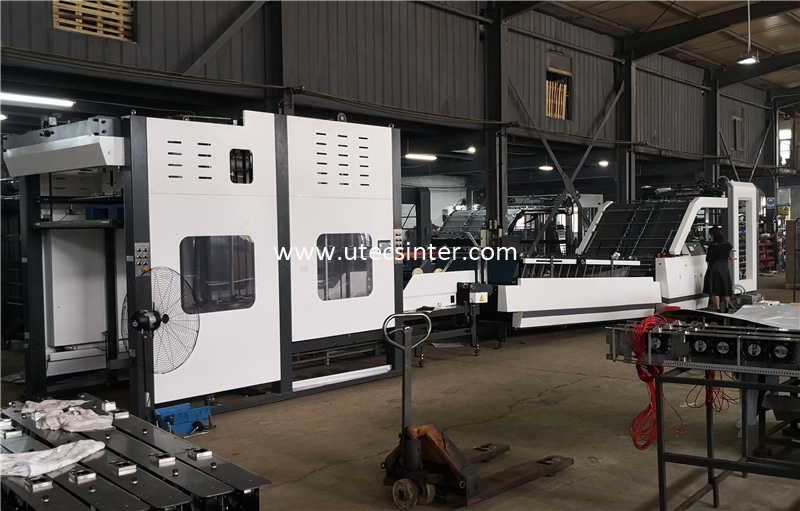

5. Non-stop collection make continuous production

6. Positive and negative stack of paper, automatic trimming

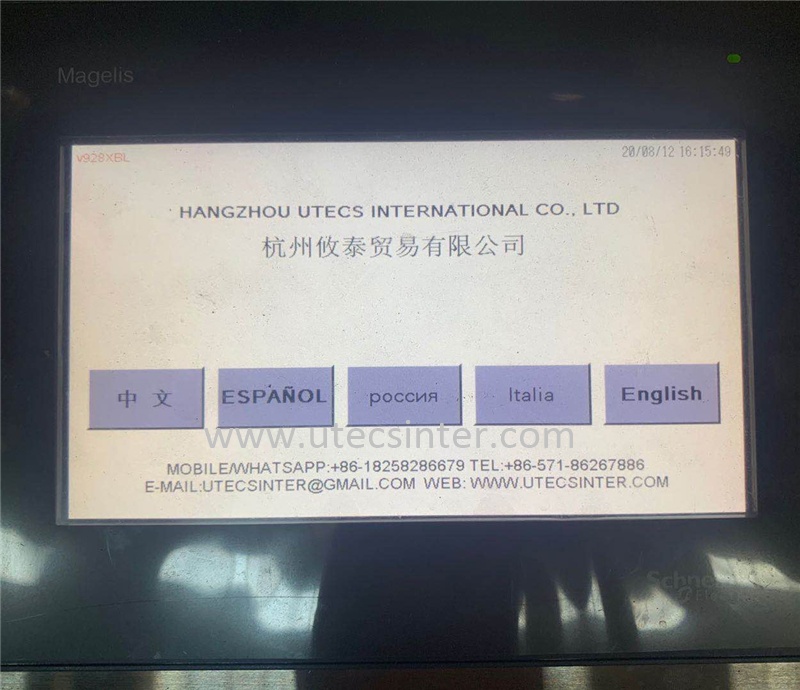

7. One key operation, fault automatic detection

8. Time Saving, high precision flute laminating machine

Parameters:

Model

BZ1300ES

BZ1450ES

BZ1650ES

Max Sheet Size

1300×1250mm

1450×1250mm

1650×1450mm

Min Sheet Size

500×500mm

500×500mm

500×500mm

Top Sheet Thickness

150-600g

150-600g

150-600g

Bottom Sheet Thickness

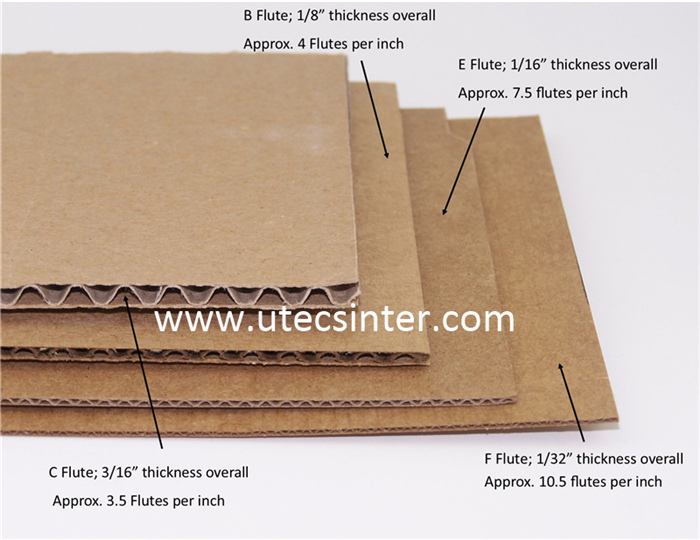

ABCEF(Corrugated paper) , (Industrial paperboard)

Max Speed

6000

6000

6000

Fitting Precision

±1mm

±1mm

±1mm

Dimensions

20×2.6×3M

18×2.7×3M

21×2.8×3M

Machine Weight

8000kg

8500kg

9000kg

Machine Power

16KW/380V

17KW/380V

18KW/380V
